KEN-Series Liquid Ring Vacuum Pumps and Compressors

With over 50 years of manufacturing expertise in liquid ring pumps, As a part of continuous development KAKATI has developed the KEN-Series Vacuum Pump. The KEN-Series is an upgrade to the proven K-Series and KV-Series. These pumps are highly energy efficient compared to the previous models. By making internal modifications to cones, impeller and improving the internal flow channels, it was possible to reduce the energy requirements up to 10%

These pumps are designed to operate in the harshest environments and demanding applications like paper, power, mining and chemical process industries. The KEN-Series has been designed for easy dismantling and overhauling to facilitate quick service. Like all KAKATI Vacuum Pumps, the KEN-Series Vacuum Pumps require very little care or maintenance in most applications

All KEN-Series pumps now come with a standard stainless steel cladding in the body. This greatly improves the life of the pump.

Basic specification

S.No Specification Description
1 Vacuum range Upto 710 mmHg

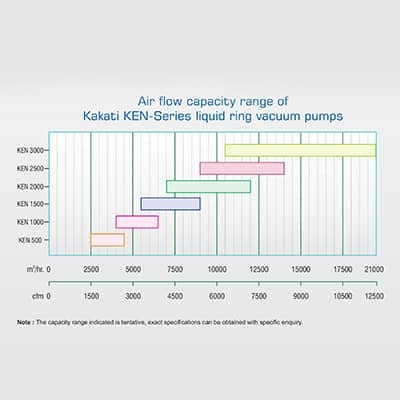

2 Capacity Upto 21000 m3/hr
3 Compressor pressure 2 bar abs
4 Standard Construction material Cast iron, Stainless Steel
*Incase of special material of construction please contact our sales team.
